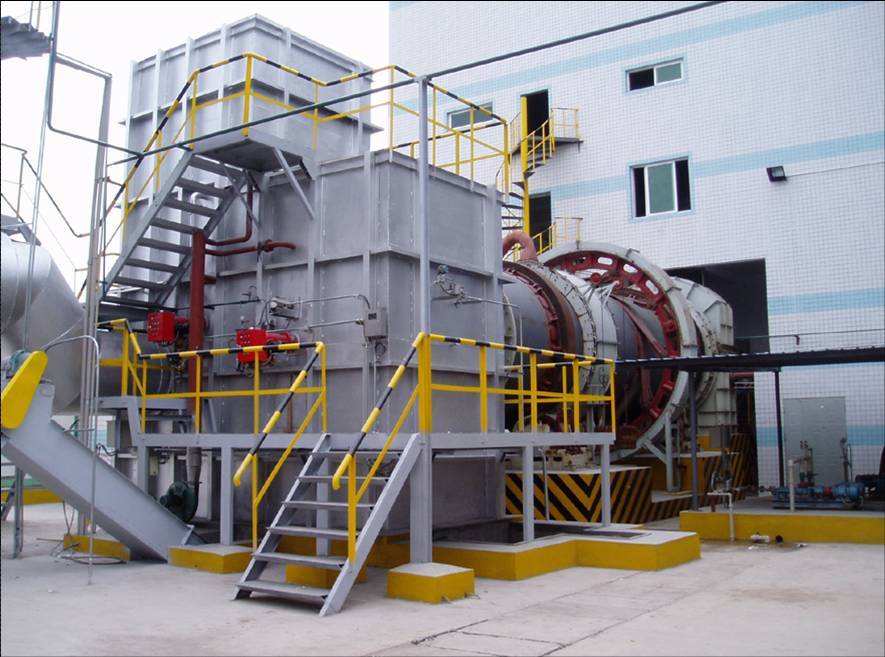

Industrial stainless steel dust collector

Stainless Steel Dust Collector mainly determines the special use of this dust collector according to the performance of stainless steel plate. The model selection of stainless steel dust collector is the same as that of carbon steel pulse dust collector. The manufacturer should choose a suitable dust collector according to the needs of site, treatment air volume and filtration area. Working principle of Yaoxian stainless steel dust collector gtgt Yaoxian stainless steel dust collector Working principle of stainless steel dust collector refers to the method of blowing compressed air.

Stainless steel dust collector refers to the method of blowing compressed air to remove the dust attached to the filter medium (bag or filter cartridge); According to the size of the dust collector, there may be several groups of pulse valves, which are controlled by pulse controller or PLC. One group of pulse valves is opened at a time to remove the dust of the bag or filter cartridge it controls, while the other bags or filter cartridges work normally. After a certain period of time, the next group of pulse valves is opened, and the next part of dust collector is composed of ash hopper, upper box, middle box and lower box, and the upper, middle and lower boxes are divided into chambers.

When working, dusty gas enters the ash hopper from the air inlet, coarse dust particles directly fall into the bottom of the ash hopper, fine dust particles enter the middle and lower boxes upward with the turning of air flow, and dust accumulates on the outer surface of the filter bag, and the filtered gas enters the upper box to the clean gas collecting pipe-exhaust duct, and is discharged to the atmosphere through the exhaust fan. The process of dust removal is to cut off the air duct of the clean air outlet of the room first, so that the bag in the room is in a state of no airflow passing through (the air is stopped and the dust is removed in different rooms).

Then, the pulse valve is opened for pulse blowing with compressed air to remove dust, and the closing time of the shut-off valve is enough to ensure that the dust stripped from the filter bag after blowing settles to the ash hopper, thus avoiding the phenomenon that the dust is attached to the surface of the adjacent filter bag with the airflow after leaving the surface of the filter bag, so that the filter bag is completely cleaned, and the exhaust valve, the pulse valve and the ash unloading valve are fully controlled by the programmable controller.

Dust-containing gas enters from the air inlet, and when it passes through the ash hopper, some large-particle dust in the gas is separated by inertial force and gravity, and directly falls into the bottom of the ash hopper. Dust-containing gas enters the filter bag filtering area of the middle box body after passing through the ash hopper, the gas passes through the filter bag, and the dust is retained on the outer surface of the filter bag. The purified gas enters the upper box body through the filter bag mouth, and then is discharged from the air outlet.
