Ceramic Honeycomb for RTO

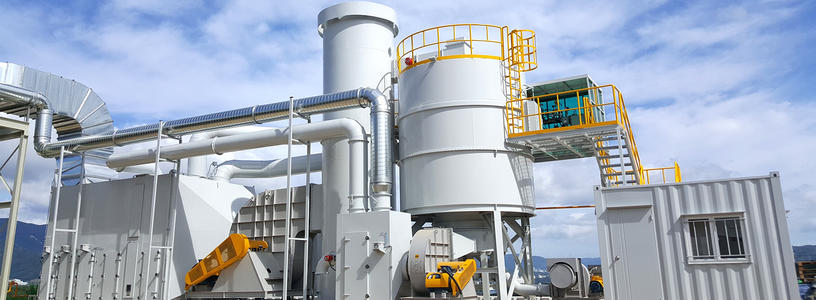

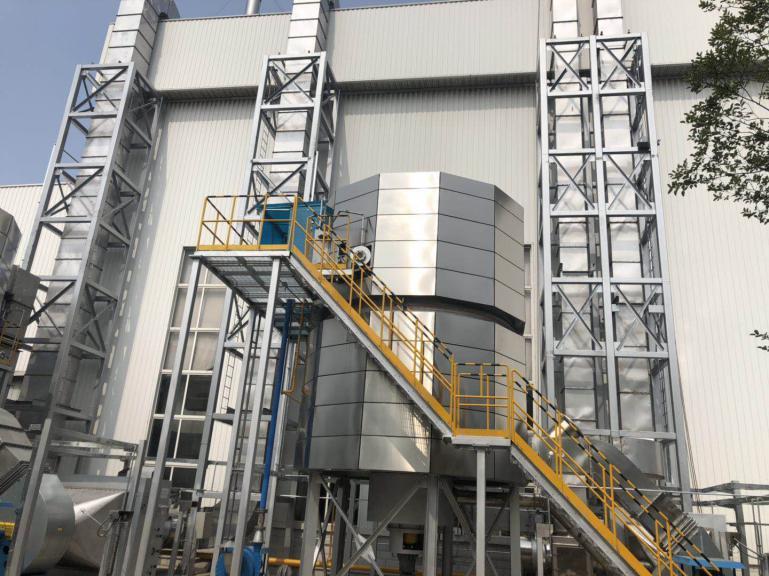

Regenerative combustion (RTO) equipment is an energy-saving high-temperature oxidation Incineration Device for waste gas, which uses the recycling of heat storage and heat release between the heat storage carrier and the waste gas to achieve the best energy absorption and utilization. Our company has independently developed multi-stage circulating RTO and multi-box RTO, which are widely used in chemical industry, pesticide, painting, pharmacy and other industries.

Regenerative combustion Rto Equipment uses ceramic regenerator to store the heat generated when organic waste gas is decomposed, and uses the heat stored by ceramic regenerator to preheat and decompose untreated organic waste gas, thus achieving high thermal efficiency. The oxidation temperature is generally between 800℃ and 850℃, and the highest is 1100℃. Regenerative incineration system is mainly used in situations where the concentration of organic waste gas is low and the amount of waste gas is large, and it is also very suitable when the organic waste gas contains corrosive substances that are toxic to the catalyst and some odors need to be oxidized at a higher temperature.

① Rich processes: two-chamber, three-chamber and rotary RTO processes are available;

②High removal rate: the removal efficiency of VOCs is high, which can reach above 99% at the highest, and it is suitable for different working conditions;

③ High applicability: it can treat various components and almost all organic waste gases;

④Economic benefits: waste heat devices can be configured as required; Efficient heat exchange makes the equipment have good economy and safety;

⑤ Safe operation: flameout protection, over-temperature alarm and other functions make the operation safer;

⑥ Convenient use: high degree of automatic control and convenient maintenance;

⑦ Appropriate structure: The system has compact structure and small floor space;

⑧ Real-time monitoring: PLC system is adopted to realize multiple protection, self-check and elimination of faults, and the system is stable and perfect.
